Resources

Info

Use the navigation menu to find the resource you are looking for.

This section of the documentation describes the resources in the API. This page explains some concepts that are common to the resource pages. It also contains an overview of the resources.

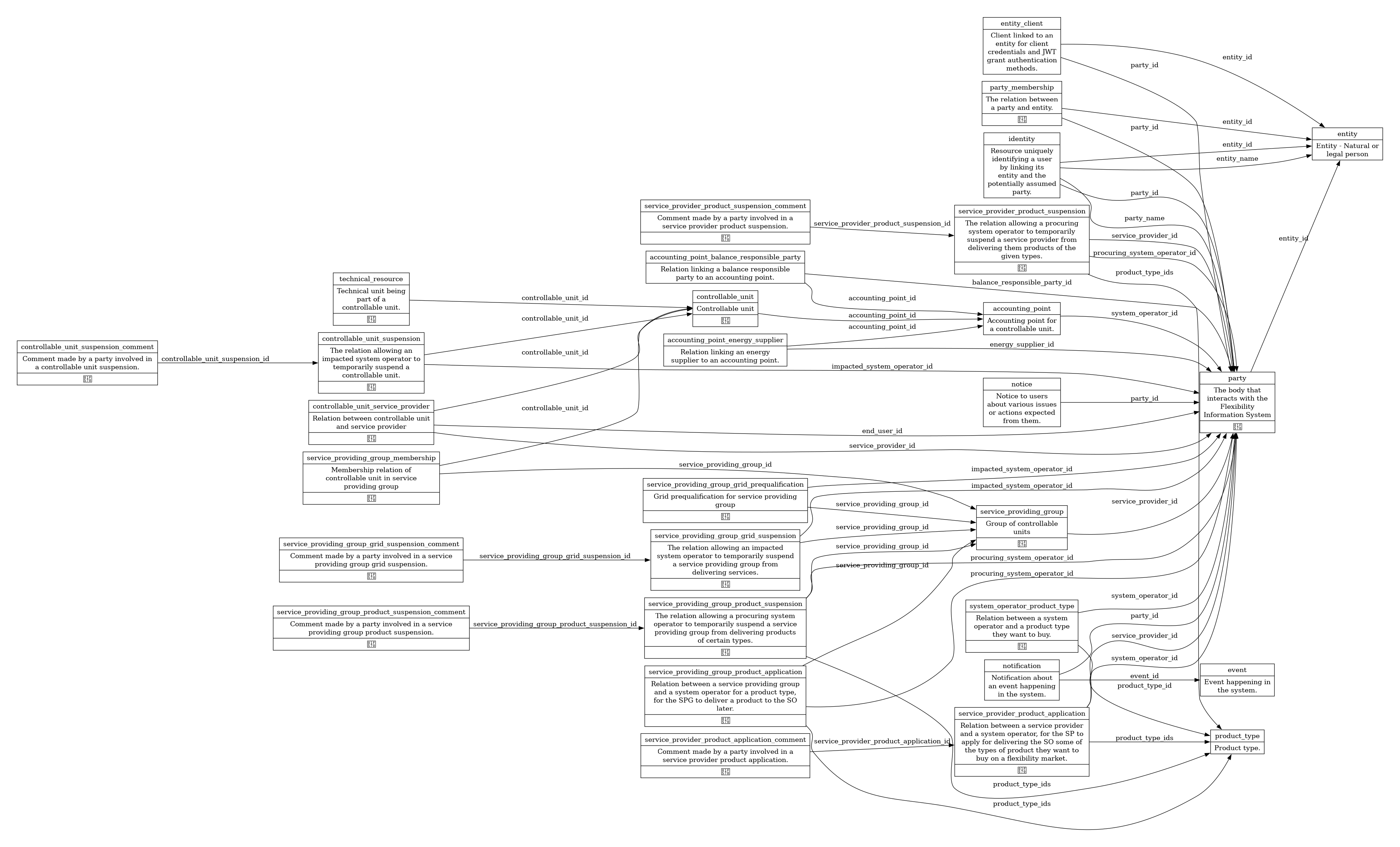

The following diagram shows all the resources in the system and how they are connected. The boxes are resources and the arrows are relationships. The label on the relationship is the name of the field on the resource where the arrow originate. Think of the arrows as foreign keys/references.

Resources marked with 🕰️ have a corresponding _history resource (see details below).

Future resources are dotted and marked with 🛠️.

Details about each resource can be found on the page for the specific resource. Use the navigation menu to find the resource.

Status

As we are exposing a resource-oriented data API, the various business processes are not represented as resources in our database and the endpoints are not explicitly tied to a particular process. Instead, we represent stateful content in the resources as status fields in the database, that can be updated along the life of a given resource to conceptually move it between the steps of a process.

The status fields generally have an initial state (e.g., new), used from the creation of the resource to the start of a process involving it, and a terminal state (e.g., terminated) to represent end of life.

Status and transitions

We are using directed graph diagrams to show statuses and their transitions.

• point - the starting point
• rectangles - statuses
• oval - "End state". Only FIS operator can move out of this state.
• The following colors indicate the driving/responsible market party for a transition
  • green - system operator
  • blue - service provider
  • pink - flexibility information system
  • black - is used when multiple market parties can/are updating the status

We are generally just showing some example transitions that we think are relevant. The system will not restrict the transitions to these, unless there are very specific reasons. This means that, in general, that the procedures and processes will dictate transitions, but it will not be enforced by the system.

Example (from controllable unit):

History

On most resources we are tracking historic versions in a separate resource suffixed by _history. If the main resource is controllable_unit, then the history resource is controllable_unit_history.

Field Level Authorization for the history resource follows the main resource, except it is read only. The history record also contains three additional fields. The table below shows what these fields are and where they inherit FLA from.

Name	Description	Format	Reference	FLA
<resource>_id	Id of the resource that this history is for	bigint Generated Read only		id
replaced_at	Time the resource was replaced	date-time Generated Read only		recorded_at
replaced_by	Id of the identity that replaced the resource	bigint Generated Read only		recorded_by

Resource Level Authorization for the history resource are documented in the same place as the main resource and typically start with <action> history ...

Notifications

When create, update, or delete actions are performed on a resource, events are usually recorded. The events are notified to certain parties. The rules for who is notified for each event are documented on the resource page in the Notifications section.

If the action is performed by a party that is listed as the recipient of the notification, the notification is not sent.

Validation rules

Each resource is subject to several layers of validation to ensure consistency in the database. The validations are documented on each individual page.

Field format validation

The first layer is field format, stated for each field on the page of each resource in the field table. It ensures every field belongs to a correct set of values, independently of other fields and other resources. Expressed in the field table.

Inter-field validation

The second layer is inter-field validation. It checks that the fields in a given resource entry are consistent with each other. Expressed as a list of validation rules.

Resource-level validation

The third layer is resource-level validation. This layer has a broader scope than one resource because it checks several resources are consistent with each other. For instance, it can perform checks in other resource tables thanks to the foreign keys.

Process-level validation

The fourth and last layer is process-level validation. It is the highest level of validation because it is linked to the business processes manipulating the database. It must verify that steps of a given process happen in the right order, and that this reflects in the database.
