Authorization model

We are providing a resource-oriented main API. Authorization is understood as allowing a user access to do an action on a resource or its field.

Our authorization model is based on a deny-by-default principle. This means that authorization is denied unless explicitly allowed. We then allow certain actions on resource or field level for a specific party type. The caller must also have the required scope to perform the action.

You can think of a resource collection as a table. Each rows is a resource. Each column is a field. We then specify Field Level and Resource Level Authorization to give access to these resources.

The following examples shows a collection of resources 1-5. The resources have the fields ID, A, B, C, D and E. The colored boxes are read (green) and update (yellow) policies for one party type. Dotted lines are field level policies while solid lines are resource level policies.

There are three field level policies that allows read access to all fields except A and update access to only D.

There are two resource level policies that allows read access to resources 3, 4 and 5, and update access to only 5.

Together, these policies allow the party type to read all fields except A of resources 3, 4 and 5, and update only field D of resource 5.

In addition to this, the user must have the required scope to perform the action.

More information about the policies and their implementation can be found in the following sections.

Scopes

Every combination of resource and action has a required scope. When a user makes a request, the system will check that the session or token has that scope. The requester can have multiple scopes. No scopes means no access.

In our system, entities are made members of parties to allow them to assume the parties and act on behalf of them. The party membership is restricted with a list of scopes. This allows fine-tuning the access control when the entity assumes the party. Entity clients, allowing users to log in as entities in an automated way, also contain scopes to limit what a machine can do in the system.

The purpose of this is e.g. to allow one person to be able to read data in the system on behalf of a party, while another person can both read and write data. This fits with the least privilege principle, where we try to give the user the least amount of access.

A scope shows what the user can do to a specific resource. It is a colon-separated string on the following format:

<verb>:<module>[:<resource>]...

..and can be read as

The user can <verb> <resource> in <module>.

Verb is the privilege or access level. Module and resource typically describe the asset or path that is being protected are defined below. Resource is optional and if omitted then it means "all resources".

Verb

A verb specifies the type of access. The verbs are defined by the actions they allow on the resource.

Verb	Description	Action(s)
read	Read-only access	Read
use	read plus calling RPCs (e.g. lookuo)	Read, Call
manage	Full access. use plus changing data	Create, Read, Update, Delete, Call

Since the access increases with read > use > manage, there is also implicit inheritance. This e.g. means that a user with the use verb implicitly has the read privilege.

Module

A module is a logical grouping of resources. The currently defined modules are.

• data - This is the data API at /api/, for resources such as controllable units, service providing groups, etc.
• auth - This is the module for auth at /auth/.

Resource

The resource part of the scope is used to make sub-scopes within a module. It is optional and not yet implemented for clients. When omitted, the scope includes everything in a the module.

The three dots ... in the format above means that resources can be nested, to create sub-scopes.

Each path on our API has a required scope, and every request is checked to see that the client has a matching scope.

Scope examples

The following are a few example scopes.

• GET /api/v0/controllable_unit/ requires read:data:controllable_unit. It is also covered by e.g. read:data and use:data but not manage:data:technical_resource.

• POST /api/v0/controllable_unit/lookup requires use:data:controllable_unit:lookup. It is also covered by e.g. manage:data and use:data:controllable_unit.

Scope assignment

Everytime a user changes identity in the system, they get assigned different scopes. These scopes are then held in the session/token.

This happens first when they log in as an entity. If they log in through an entity client, they get the scopes associated to that client. Otherwise, they get the default scopes manage:auth and manage:data, which are sufficient to assume a party and get read-write access to the resources in the system.

This happens a second time when the user assumes a party. If they assume a party that they own, then their scopes do not change. If they assume a party they are a member of, then they get assigned the intersection of the scopes they had as an entity with the scopes granted by the membership. In other words, they keep the most powerful scopes from their entity while still respecting the limitations set by the party membership. Unassuming the party will reset the scopes to those the user would be granted if logging in as an entity (through the entity client they provided, if they did).

This enables administrators to choose what each user can do on behalf of their organisation, with the option of setting a different limit for each party, i.e., set to what extent the user can exploit each responsibility the organisation has in the market. But this also allows the administrators for instance to set up a client so that people can use the API to access the system in a read-only manner, thus reducing the risks of editing sensitive data by mistake when accessing the system programmatically.

Party type check

The party type check is what it says on the tin. It checks that the party type doing the request is allowed to do the action on the resource. This is an additional check added on just a few routes.

Field Level Authorization (FLA)

We are basing FLA on an "authorization matrix". It is a table that shows which actions are allowed for each party type on each resource field. The matrix shows what each party type or anonymous users can do on each of the fields of the resource.

An example of an authorization matrix is shown below. This table shows that the id field of resource entity is readable by all. The name field is readable by all and can be updated and created by the Service Provider. The number field of resource invoice can be created and read by Service Provider, and read by End User, but System Operator cannot interact with this field at all.

Resource	Field	Service Provider	System Operator	End User
entity	id	R	R	R
entity	name	CRU	R	R
invoice	number	RC		R

The permission matrix is displayed as a markdown table in the give resources docs page.

History resources inherit the authorizations from the main resource.

Resource Level Authorization (RLA)

Resource level authorization is a way to control access to each resource as a whole. As an example, a service provider should only be able to see the controllable units that are assigned to them.

RLA is documented as a set of policies per resource and party type. We document this as a list of textual policies per type, as shown for Service Provider (SP) and System Operator (SO) in the example below.

Policy key	Policy	Status
CU-SP001	Read CU where they are SP. Only for the contract period.	PARTIAL
CU-SP002	Create new CU.	PARTIAL
CU-SP003	Update CU where they are current SP.	PARTIAL

Policy key	Policy	Status
CU-SO001	Read and update CU that are connected to AP belonging to SO.	PARTIAL

We name the policies in the format <Resource>-<Party Type Abbreviation><Number>. The number is just used as a key during discussions and serves as a way for us to document in the code what policy is being implemented. It is also handy for code search.

Status can be one of:

• PROPOSED means that the policy is proposed but not decided.
• TODO means that the policy is not implemented yet.
• PARTIAL means that the policy is partially implemented.
• DONE means that the policy is fully implemented.

Policies can be in TODO or PARTIAL state either if we have not gotten to it yet or the current platform does not support it (e.g. we are missing a relation/entity).

Time-dependent RLA

Some combinations of party type and resource have time-dependent access policies. In such cases, instead of controlling access in a binary way (the user can or cannot see the resource based on some condition), access is partially given, on the part of the timeline where the user has the required contract. This means that we need to make sure that no stateful operations happening outside of the allowed partial timeline are visible to the user. This includes, for instance:

• former versions of records erased before the start of the allowed timeline;
• newer versions of records introduced after the end of the allowed timeline;
• records deleted before the start of the allowed timeline;
• new records created after the end of the allowed timeline.

A typical example is the service provider (SP) on a controllable unit (CU). The SPs contract on the CU is time-dependent, with a valid from and to date. This in turn means that the SP should only have update privileges to the CU during the contract period, but should see the CU even after the contract has ended. However, an old SP should not be able to see updates to the CU fields done by a new SP, after their contract has ended.

Several strategies are in use to implement such constraints, simplifications being possible in some cases depending on which operations are available on the resource.

Method 1: Latest visible record

When fields on the resource are not time-dependent, we must use audit history to provide access when doing read operations on the main collection/resource. This means that we authorize data stored with record time based on the valid time. Access policies are implemented on both the main resource and its history table. The history view exposed in the API makes a union of both, so we can see all present and past records, all filtered by the policies we want on the resource.

Then, we can pick from this collection based on time. For instance, we can see which records were active at a given time in the past by filtering the record time on each line.

The simplest filtering rule we can use is to just pick the latest visible record. This ensures that a user who can read the current records will see them instead of historic values, and that conversely, if they cannot see the new ones, they will see historic values presented as current records.

Let us take the example of the controllable unit resource where access for service providers is based on CUSP contracts.

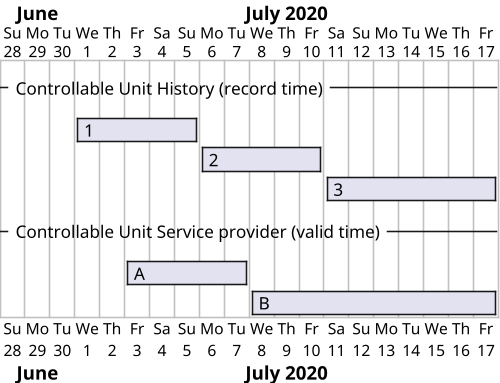

In this example we have 3 records in the data history for the CU. 3 is the current record. Two service providers, A and B, have had contracts on the CU. B is the current SP. Each of the service providers will see the latest record that overlaps with the end date on their latest contract.

So, when each of the service providers does a GET /controllable_unit/{id} they will see different records.

• A will see record 2.
• B will see record 3.

Delete operation

A drawback of this method is that it does not handle deleted records well. Indeed, on resources with history enabled, when records are deleted, they are removed from the main table but kept in the history table.

This means that the latest visible version filtering method takes the version of the record right before deletion and shows it in the main resource, instead of not showing it at all.

Therefore, the current method cannot be used for resources supporting a delete operation.

Method 2: As-of query

For resources that can be deleted, we introduce a more advanced mechanism. Instead of taking the latest visible version of each record, we take all visible records and only keep those that were active at a certain date, this date being the latest point in the past where the user had a contract authorising read access on the resource. We call it the as-of timestamp, because conceptually this turns queries to the resource into queries as of this specific timestamp.

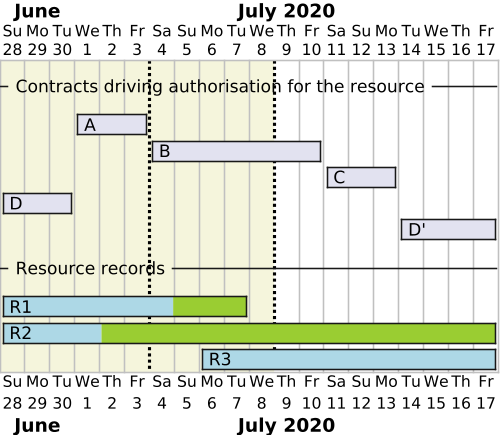

Let us take the example of a resource managed in turn by 4 users: D, A, B, C, and then D again.

The resource has 3 records. The first one is updated (marked by a colour change), then deleted while B manages the resource; the second one is updated by A; the last one is created by B and never updated.

We suppose the current date is 2020-07-09, midnight (marked with a change of background color).

We need a definition for the as-of timestamp. Let us take the timeline with all contracts for a given user. Then we can define the as-of timestamp as the latest past point of this timeline, i.e.:

min(max(contract_timeline), now)

This means that this date is the end of A's contract for A, and this timestamp is just now for all others (C and D having contracts in the future). Both timestamps are marked with a dotted line.

This means that a query from A will give only 2 records, as R3 was not created when A stopped being in charge. Moreover, it will give R1 in its former state, because the update also happened after their contract came to an end.

However, a query from one of the other users will give the latest state, i.e., only R2 and R3, with R2 in its latest version.

It is possible to change or refine the definition of the as-of timestamp as needed. For instance, if future contracts (like the ones of C and D) are too far in the future, it may be judged unfair to show the current data of the resource. The current example is simplified by taking contracts that are very close to each other in time.
